• Easy to operate

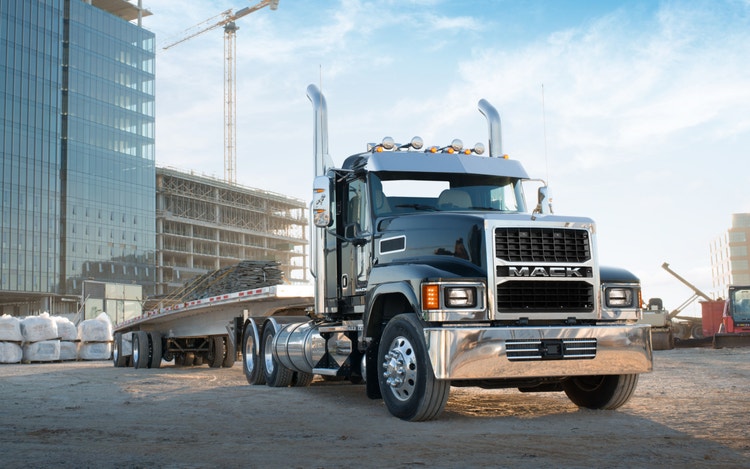

    The mDRIVE™ transmission makes it simple and comfortable to drive a Pinnacle™ truck, opening up staffing to a larger pool of drivers. mDRIVE™ is automated, and that means less wear and tear on drivers. So they can finish the job strong and stay focused.

  • Minimal service

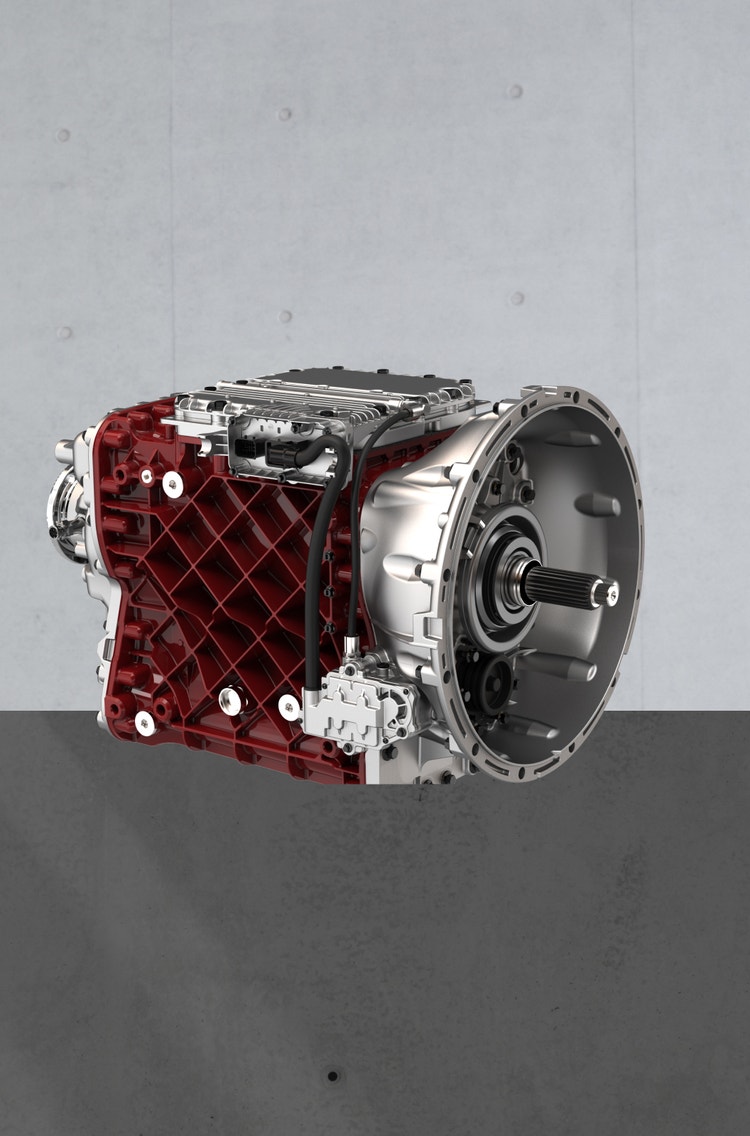

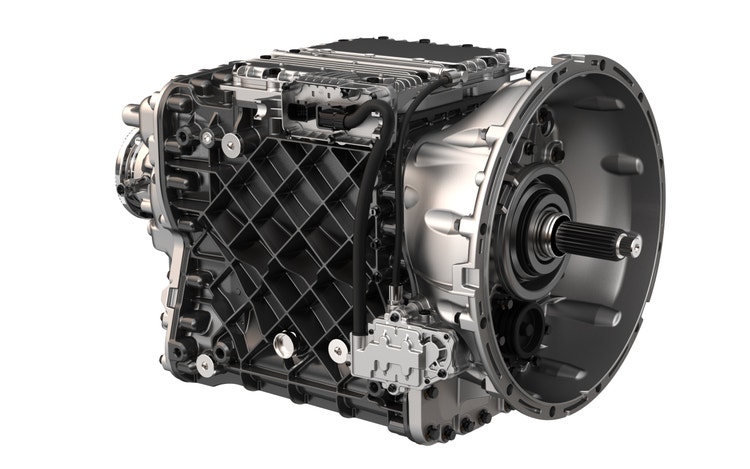

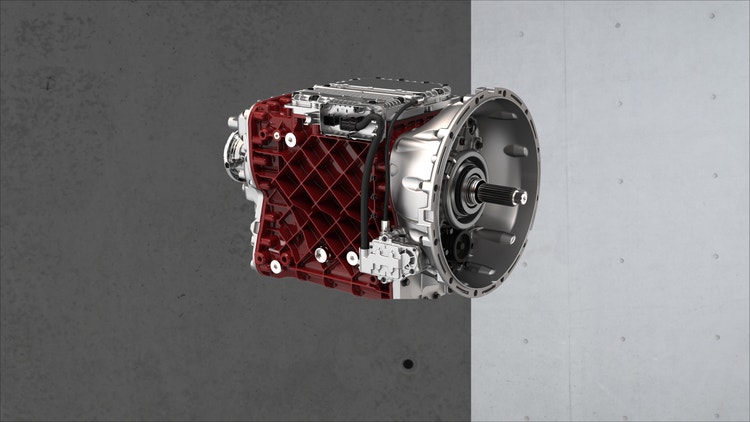

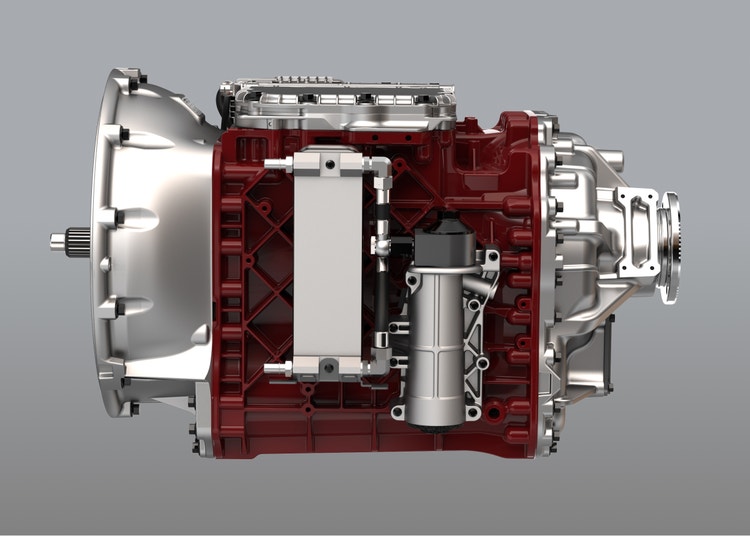

    mDRIVE™ automated manual transmission is based on proven technology and superior design that requires minimal service and significantly reduces maintenance costs.

  • Reduced wear and tear

    mDRIVE™ features constant monitoring and intelligent shift strategies so there’s less stress on the driveline, resulting in a longer life for your transmission and more money toward your bottom line.

  • Specifications

    +
    • Direct Drive

      • Gear Ratios

        • Forward Gear
        • Ratio
        • Step
        • 1st
        • 14.94
        •
        • 2nd
        • 11.73
        • 27%
        • 3rd
        • 9.04
        • 30%
        • 4th
        • 7.09
        • 28%
        • 5th
        • 5.54
        • 28%
        • 6th
        • 4.35
        • 27%
        • 7th
        • 3.44
        • 26%
        • 8th
        • 2.70
        • 27%
        • 9th
        • 2.08
        • 30%
        • 10th
        • 1.63
        • 28%
        • 11th
        • 1.27
        • 28%
        • 12th
        • 1.00
        • 27%
        • Reverse Gear
        • Ratio
        • Step
        • 1st
        • 17.48
        •
        • 2nd
        • 13.73
        •
      • Direct Drive Specifications

        • Length
          35.1" [891 MM]
        • Weight (Dry)
          597 lb. [271 kg]
        • Oil Capacity
          16.9 Quarts [16 L]
        • Torque Rating
          1920 lb. ft. [2600 N•m]
        • Number of Speeds - Forward
          12
        • Number of Speeds - Reverse
          2
        • Case, Bell Housing Material
          One piece Heat treated aluminum
        • Case, Bell Housing Type
          SAE #1
        • Type of Gears
          Helical

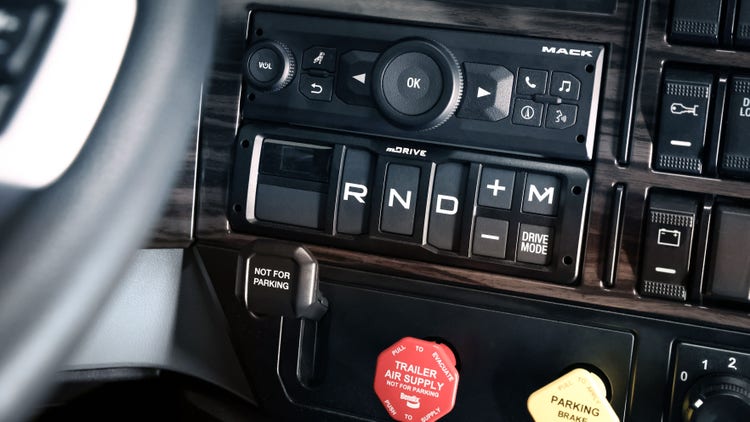

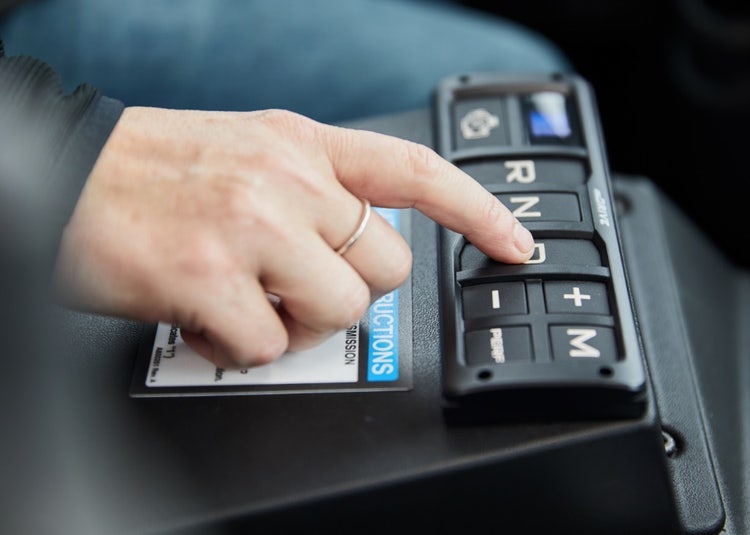

        • Control
          D panel dash mounted shifter
        • Shifter Indicators
          R-Reverse / N-Nuetral / D-Drive / M-Manual
        • Lubrication
          Splash & Pressure
    • Overdrive

      • Gear Ratios

        • Forward Gear
        • Ratio
        • Step
        • 1st
        • 11.73
        •
        • 2nd
        • 9.21
        • 27%
        • 3rd
        • 7.09
        • 30%
        • 4th
        • 5.57
        • 27%
        • 5th
        • 4.35
        • 28%
        • 6th
        • 3.41
        • 28%
        • 7th
        • 2.70
        • 26%
        • 8th
        • 2.12
        • 27%
        • 9th
        • 1.63
        • 30%
        • 10th
        • 1.28
        • 27%
        • 11th
        • 1.00
        • 28%
        • 12th
        • 0.78
        • 27%
        • Reverse Gear
        • Ratio
        • Step
        • 1st
        • 13.73
        •
        • 2nd
        • 10.78
        •
      • Overdrive Specifications

        • Length
          35.1" [891 MM]
        • Weight (Dry)
          597 lb. [271 kg]
        • Oil Capacity
          16.9 Quarts [16 L]
        • Torque Rating
          1920 lb. ft. [2600 N•m]
        • Number of Speeds - Forward
          12
        • Number of Speeds - Reverse
          2
        • Case, Bell Housing Material
          One piece Heat treated aluminum
        • Case, Bell Housing Type
          SAE #1
        • Type of Gears
          Helical
        • Control
          D panel dash mounted shifter
        • Shifter Indicators
          R-Reverse / N-Nuetral / D-Drive / M-Manual
        • Lubrication
          Splash & Pressure
  • Software Options

    +
    • AVO-BAS

      Basic Shift

      Standard gear shift strategy. Tuned for maximum fuel economy.

    • AVO-COMF

      Easy Shift

      A feature package targeting livestock haul and recreational vehicle applications and similar applications where load shifting must be minimized. It revises the AMT’s shift strategy to provide smoother launches, less aggressive shifting and more gentle driving.

    • AVO-ENH

      Enhanced "Bad Roads" Shifting

      Targeting vocational vehicles such as construction and heavy construction. Includes the Performance Mode for best performance and driveability in exchange for fuel economy. Kick-down pedal for best acceleration and performance. Premium gear lever with “Perf” button and gear selection buttons. Performance mode maximizes gradeability and improves starting and shifting in rough or hilly terrain.

    • AVO-HD

      Heavy Duty Shifting

      A more aggressive shift strategy than “Bad Roads” for heavy haul applications with more performance-oriented shift points, less skip shifting and more. Recommended to be used with Titan Heavy Haul over 80 metric tons / 176k lbs.

  • Maintenance Intervals

    +

    mDRIVE™

    Normal Duty

    Greater than 6 mpg Less than 39L/100km

    Heavy Duty

    Greater than 5 mpg Less than 50L/100km

    Severe Duty

    Less than 5 mpg Greater than 50L/100km

    Transmission oil and filter (Replace)

    Oil quality: Mack Transmission Oil 97318*

    Miles

    500,000

    Not Allowed

    Km

    800,000

    Not Allowed

    Hours

    60 months

    Not Allowed

    mDRIVE™; mDRIVE™ Severe Duty and mDRIVE™ with Crawler Gears

    Transmission oil and filter (Replace)

    Oil quality: Mack Transmission Oil 97319*

    * Approved oils only, lists can be made available

    Miles

    500,000

    250,000

    Km

    800,000

    400,000

    Hours

    60 months

    2,500

    T300 SERIES TRANSMISSION

    Highway Standard and Extended Oil (Replace)

    Miles

    Std: 250,000 / Ext: 500,000

    -

    Km

    Std: 400,000 / Ext: 800,000

    -

    Hours

    Std: 24 months / Ext: 36 months

    -

    Vocational Standard and Extended Oil (Replace)

    Miles

    -

    Std: 40,000 / Ext: 80,000

    Km

    -

    Std: 64,000 / Ext: 128,000

    Hours

    -

    Std: 12 months / Ext: 12 months

    AXLES

    Rear Axle Oil (Replace)

    Miles

    500,000

    80,000

    Km

    800,000

    125,000

    Hours

    36 months

    12 months
