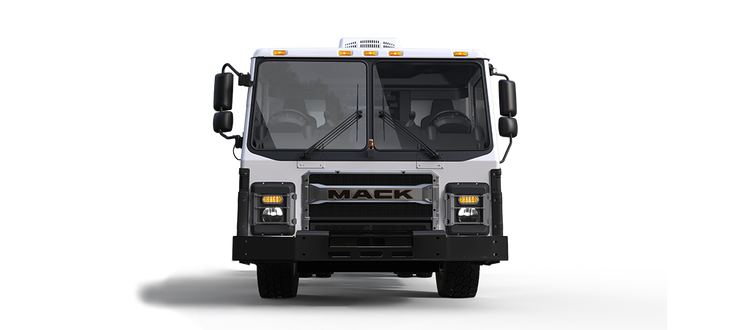

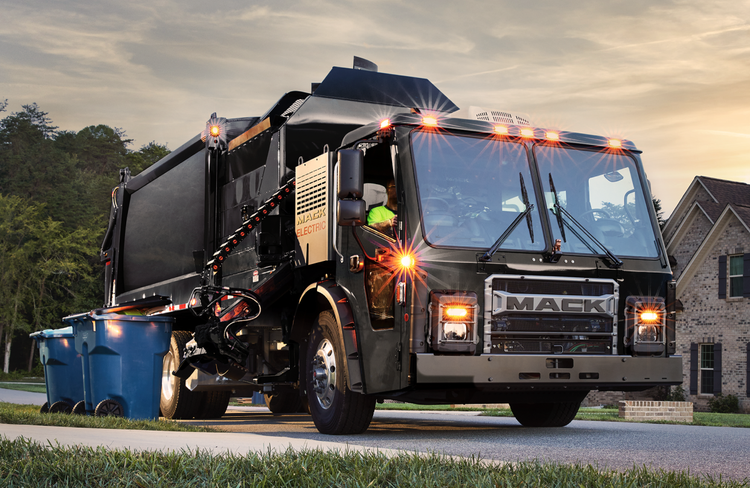

LR Electric

Key Components

Power Source

2 AC motors with 400kW Peak (536 hp) & 334 kW (448 hp) continuous power

Batteries

4 NMC lithium-ion batteries (Lithium Nickel Manganese Cobalt Oxide), 600V, fast charge capability

Transmission

2-speed Mack Powershift 4,051 lb.-ft. peak output torque

Charging System

Up to 150kW charge power with a max current of 200A, 550-750 volts, compliant with SAE J1772

Auxiliary Power

Circuits: 12, 24 and 600V, 260 Amp. Powering PTO, steering assist, pneumatic, and climate systems

Brakes

Two-stage regenerative

Specifications

Weight Rating (GVWR)

66,000 lbs.

Axles

Mack FXL20 20,000-lb. front axle

Mack S462R 52,000-lb. rear axles

Mack mRIDETM 46,000-lb. suspension

Service and Training

Supported through Mack dealership network

Payload

Up to 25,500 lbs.

Comfort

Extended cab for more room; a tilt and telescopic steering column; new seat positions; suspended pedals; adjustable knee bolsters and armrests; integrated air conditioner

Operating Range

Up to 100 on-the-job miles

Charging Time and Rate

About 120 minutes @ 150kW
