The power of Mack.
Integrated Innovation
All powertrain components are designed to work together for optimum performance, increased fuel efficiency and lower maintenance costs.
Build to Last
We’ve engineered Mack powertrains for reliability and outstanding performance no matter where they go. Which, with a Mack truck, can be almost anywhere.
Made in America
We take pride in being homegrown. All Mack engines, transmissions and drivelines are assembled in Hagerstown, MD USA.
MP®7
The MP®7 engine offers an exceptional power-to-weight ratio to boost your bottom line. Powerful and lightweight, the MP®7 helps maximize payloads in weight-sensitive applications like bulk hauling and keeps route times down in refuse.
2-5% FUEL ECONOMY IMPROVEMENT
51 LBS WEIGHT SAVINGS
325-425 HORSEPOWER
1260-1560 LB.-FT. TORQUE
11L DISPLACEMENT
ASSEMBLED IN THE USA
WAVE PISTON
The next evolution in piston design
Mack’s innovative wave piston design delivers 2% improvement in fuel economy and 90% reduction in soot. The waves in the piston bowl redirect flames in the combustion chamber to utilize all available oxygen for a cleaner and more complete burn than standard diesel pistons.

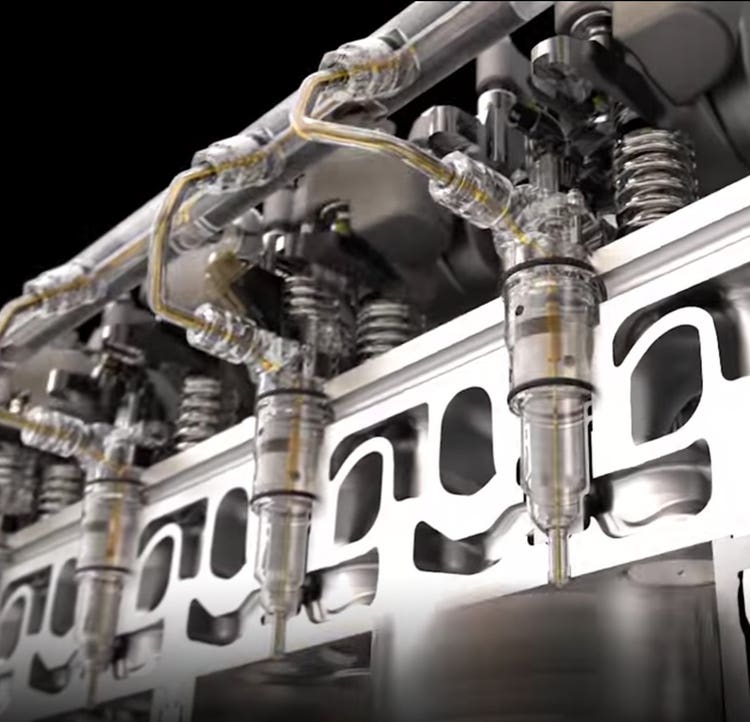

COMMON RAIL FUEL SYSTEM
Uncommon power and efficiency
This direct injection system delivers ultra-precise control over fuel injection pressure, timing and volume. The result is more power and efficiency, with less engine noise. Save fuel, gain power and lower emissions.
CLEARTECH™ ONE
Do more with less
This next-generation single box exhaust aftertreatment system combines Selective Catalytic Reduction (SCR) technology and Diesel Particulate Filter (DPF) to deliver near-zero emissions and low maintenance in a lighter, more compact unit.
A turbo for all speeds
Variable Geomoetry Turbocharger
Mack’s electronically controlled Variable Geometry Turbocharger incorporates the latest technology to control turbo boost at all RPM ranges and engine loads, so you can have power and efficiency at any speed.
Serious Weight Savings
The evolved 11L MP®7 drops 51 lbs. and saves 2-5% in fuel consumption, continuing its stellar reputation for weight-sensitive applications.
Smaller Carbon Footprint
The latest MP®7 engines are specially designed to meet the EPA 2017 standards. They reduce greenhouse gas emissions (CO2), helping to make your trucks some of the cleanest and most fuel-efficient on the road.
Assembled in the USA
We take pride in being homegrown. All Mack engines, transmissions and drivelines are assembled in Hagerstown, MD USA.
Engine Specssss
Maintenance Intervals
Base Configurations
TYPE
Direct Injection Diesel
NUMBER OF CYLINDERS
6, In-Line
BORE & STROKE
4.84" x 5.98" [123mm x 152mm]
DISPLACEMENT
659 [11L]
COMPRESSION RATIO
16:1
FIRING ORDER
1-5-3-6-2-4
TORQUE RISE
60%
CLUTCH ENGAGEMENT
1121 lb-ft [1647 N•m] @ 800 RPM
IDLE SPEEDS
Low: 600 RPM Adjustable – High: 2000 RPM
ENGINE BRAKE RETARDING POWER
420 HP [372 kW] @ 2100 RPM
DRY WEIGHT (APPROX)
2207 lbs [1001 kg]
Model Year 2011 and Newer EnginesUsing Maack EOS-4.5 Premium Oil |
NORMAL DUTYGreater than 6 mpg Less than 39L/100km |
HEAVY DUTYGreater than 5 mpg Less than 50L/100km |
SEVERE DUTYLess than 5 mpg Greater than 50L/100km |
||
|
MP® 7 / MP® 8 or MP®10 with 42 L / 44 Qt Oil Pan: Mack EOS-4.5* Premium Oil, Filters and Fuel Filters (Replace) |
MILES | 60,000 / 55,000** | 45,000 / 40,000** | 35,000 / 30,000** | |
| KM | 95,000 / 90,000** | 70,000 / 65,000** | 55,000 / 50,000** | ||
| HOURS | 1,700 / 1,600** | 1,300 / 1,200** | 825 / 750** | ||
|
MP® 10 with 52 L / 55 Qt Oil Pan: Mack EOS-4.5* Premium Oil, Filters, and Fuel Filters (Replace) |
MILES | 65,000 / 60,000** | 50,000 / 45,000** | 40,000 / 35,000** | |
| KM | 105,000 / 95,000** | 80,000 / 70,000** | 65,000 / 55,000** | ||
| HOURS | 1,750 | 1,300 | 825 | ||
Model Year 2011 to 2016 Engines Using Mack EOS-4 Premium Oil |
|||||
|
MP® 7 / MP® 8 or MP®10 with 42 L / 44 Qt Oil Pan: Mack EOS-4* Premium Oil, Filters and Fuel Filters (Replace) |
MILES | 45,000 | 35,000 | 25,000 | |
| KM | 75,000 | 60,000 | 45,000 | ||
| HOURS | 1,300 | 1,000 | 625 | ||
|
MP® 10 with 52 L / 55 Qt Oil Pan: Mack EOS-4* Premium Oil, Filters and Fuel Filters (Replace) |
MILES | 50,000 | 45,000 | 35,000 | |
| KM | 80,000 | 75,000 | 60,000 | ||
| HOURS | 1,300 | 1,000 | 625 | ||
MACK PREMIUM LONG LIFE COOLANT |
|||||
| Mack Premium Long-Life Coolant (Replace) | MILES | 1,000,000 | |||
| KM | 1,600,000 | ||||
| HOURS | 96 months | ||||
| Mack Premium Long-Life Coolant Filter (Replace) | MILES | 150,000 | |||
| KM | 240,000 | ||||
| HOURS | 12 months | ||||
MACK PREMIUM FULLY FORMULATED COOLANT |
|||||
| Mack Premium Fully Formulated Coolant (Replace) | MILES | 300,000 | 150,000 | ||
| KM | 500,000 | 240,000 | |||
| HOURS | 24 months | 12 months | |||
| Mack Premium Fully Formulated Coolant Filter (Replace) | TIME | At every oil change | |||
MISCELLANEOUS |
|||||
| Valve Adjustment | MILES | 150,000 / then every 300,000 | |||
| KM | 240,000 / then every 500,000 | ||||
| TIME | 12 months / then every 24 months | ||||
| Fan and Accessory Drive Belt (Replace) | MILES | 300,000 | 150,000 | ||
| KM | 500,000 | 240,000 | |||
| TIME | 36 months | 12 months | |||
| Mack Premium Air Filter and Fuel Tank Ventilation Filter (Replace) | TIME | Maximum 24 months | |||
