MACK
MP®13
- Power
- 540
- MAX HP
- Torque
- 1,950
- lb-ft max
- Displacement
- 13
- liters
Carrying the Mack legacy forward
Key Features & Benefits
Pure power. Real purpose.
The highest-rated 13-liter engine from a North American manufacturer means more power without the weight penalty.
Increased PCP 250 bar
Peak cylinder pressure of 250 bar extracts more energy from fuel, supporting higher compression ratios and greater horsepower without sacrificing durability.
Stronger and lighter engine block
Re-engineered using computer-generated structural analysis, the CGI block and reinforced alloy cylinder head handle higher pressures and temperatures while reducing weight.
Predictive software
Advanced algorithms anticipate driver demands, smoothing engine response and reducing fuel waste.
Command every grade
With up to 633 HP of engine braking (up from 505 HP), you get better grade control and less service brake wear.
Pre-turbine throttle
Delivers over 20% increase in engine braking for stronger, more confident control on steep descents.
Available automated activation
Engine brake activates when the driver removes foot from the accelerator, providing intuitive braking response.
Enhanced brake integration
Combines traditional engine braking with electronic functionality for maximum retarding performance across all conditions.
Built to last. Designed for easy service.
Significant system changes. Zero new maintenance requirements.
No new maintenance intervals
Despite new EATS components, the MP®13 requires no new service intervals, protecting uptime and keeping maintenance costs predictable.
500,000+ mile useful life design
Every component engineered to meet the more than 1/2 million-mile useful life standard without adding service complexity.

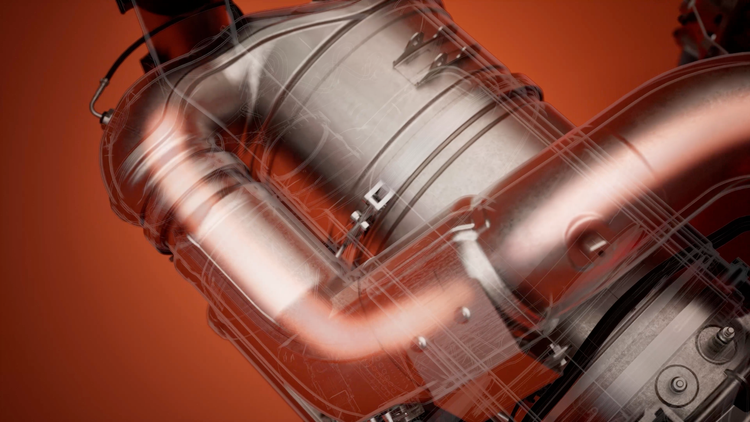

Easy DPF access
Individual module serviceability and easy DPF removal so your technicians make replacements and you can get back out on the road.

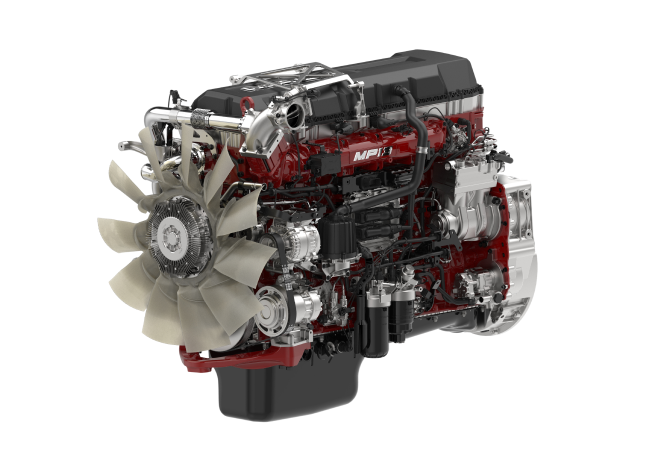

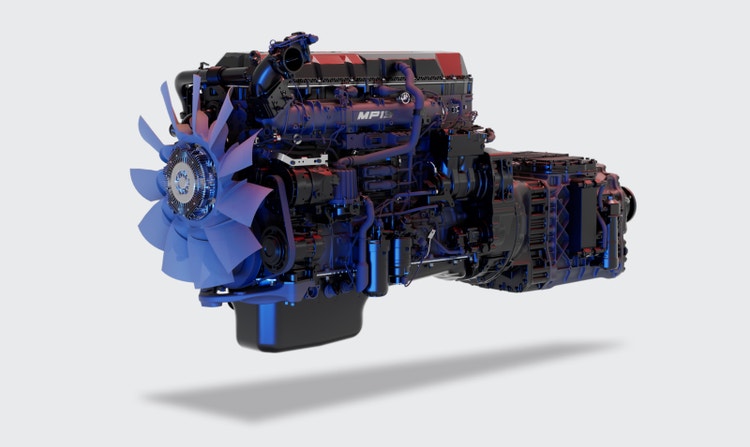

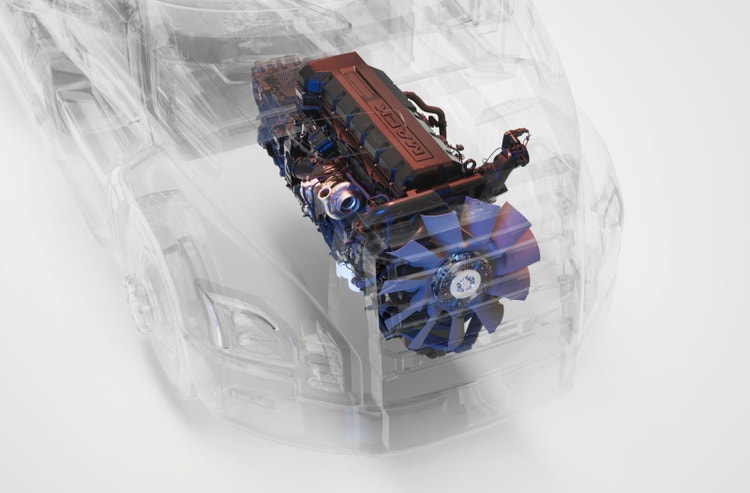

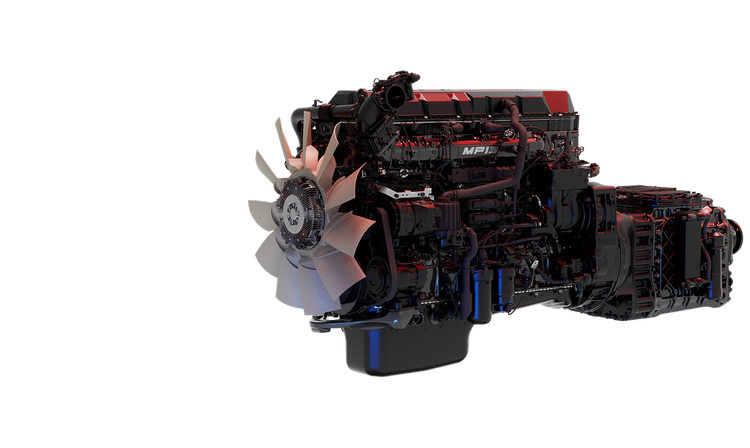

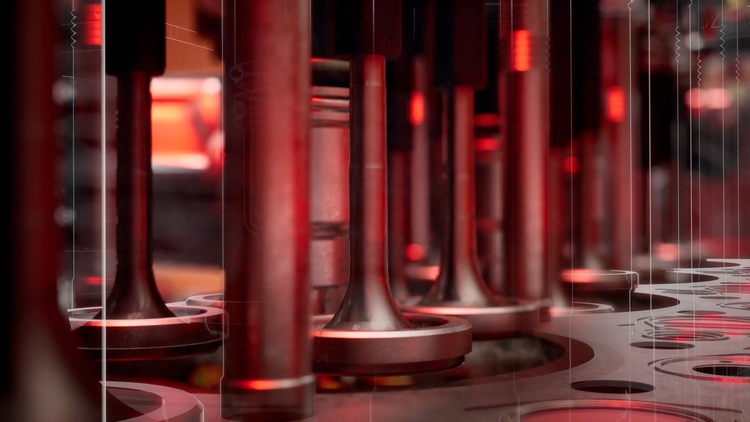

The MP®13, rebuilt from the inside out.

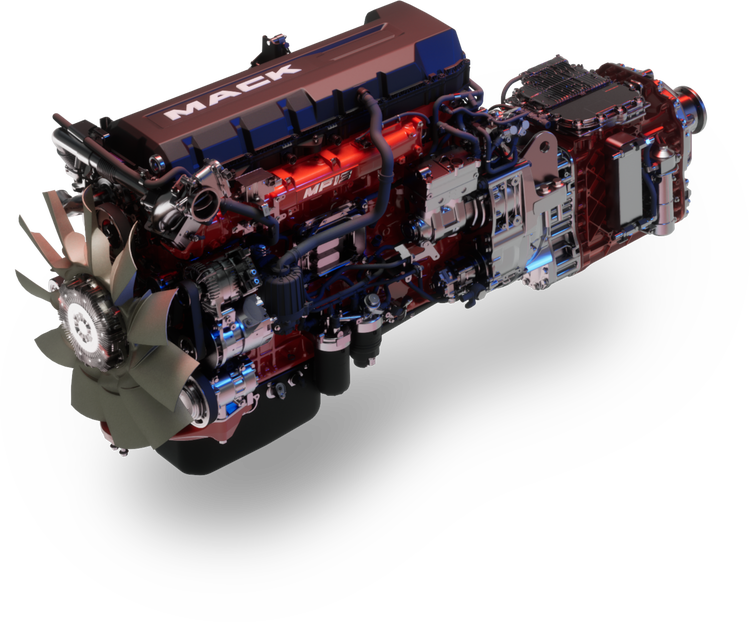

The all-new MP®13 delivers more power and torque than ever with a completely redesigned combustion system, new wave piston technology, and torque curve that puts peak performance to work as low as 900 RPM. Whatever the haul, whatever the terrain, this engine was built to outperform.
Performance across every application.
No two jobs are the same and the MP®13 is ready for all of them. From highway miles to heavy-duty work cycles, its advanced engine architecture adapts to the demands of every application without compromise.

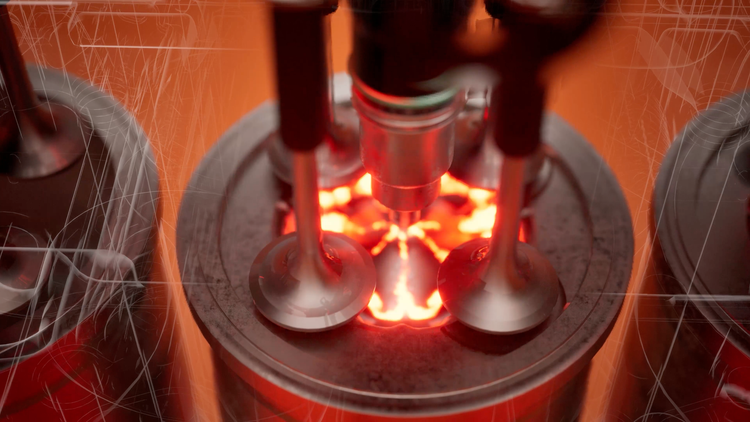

7X2 Wave Piston
The wave-divider piston bowl splits and redirects fuel sprays for complete combustion, improving efficiency and reducing soot on the aftertreatment system.

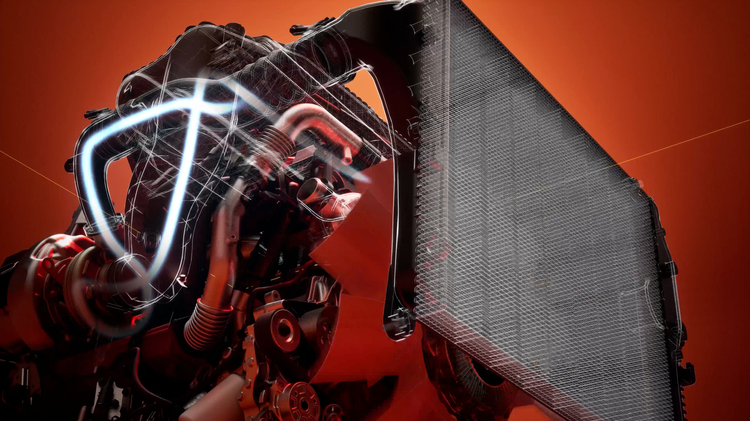

Fully Variable Coolant Pump
Available within mDRIVE™ transmissions, this adjusts coolant flow based on real-time operating conditions, reducing parasitic drag and shortening warm-up times for better fuel economy.

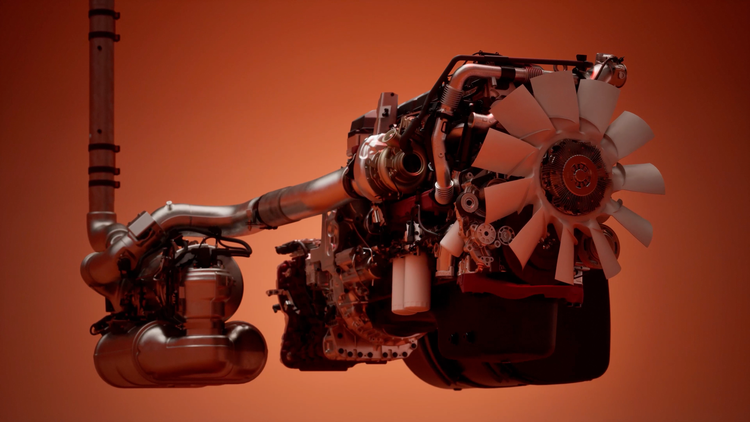

New Engine Aftertreatment System
Uses electrically heated elements to reduce soot buildup, extend filter life, and improve emissions compliance.
Low-RPM Torque Delivery
Peak torque at 900 RPM keeps your trucks performing at full strength through demanding duty cycles, delivering the power you need when you need it.
Strengthened Crankshaft
Built for demanding duty cycles and long-term reliability, the upgraded metallurgy and reinforced geometry withstand the additional loads from more powerful, efficient combustion.
Compacted Graphite Iron Block
Greater tensile strength and fatigue resistance than traditional gray iron delivers superior durability under high peak cylinder pressures throughout its 500,000-mile useful life.
Engine performance
Specifications
Downloads
Engine specs
POWER RANGE
405-540 hp
TORQUE RANGE
1,450,–1,950 lb-ft
ENGINE BRAKE RETARDING POWER
- 590hp @ 2,100 rpm
- 630hp @ 2,400 rpm
CLUTCH ENGAGMENT
770 lb-ft @ 800 rpm
IDLE SPEED RANGE
550–2,100 rpm
RECOMMENDED CRUISE
950–1,250 rpm
TURBOCHARGER
Variable geometry
COMPRESSION RATIO
20:1
WEIGHT (DRY)
2,691 lbs

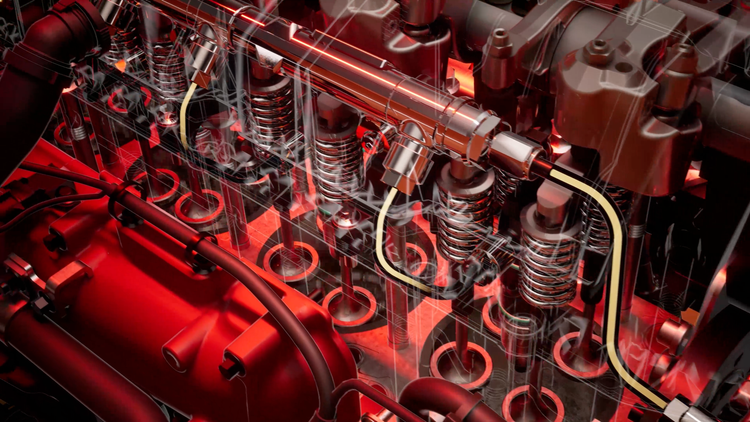

FUEL SYSTEM
High pressure F3 common rail
RAIL PRESSURE MAX
2,400 BAR
OIL CAPACITY
Dry fill 39.5L,
Oil change w/filters 35L
Applications & compatibility
IDEAL FOR
- Long haul
- Regional haul
- Construction
- Refuse
- Bulk freight

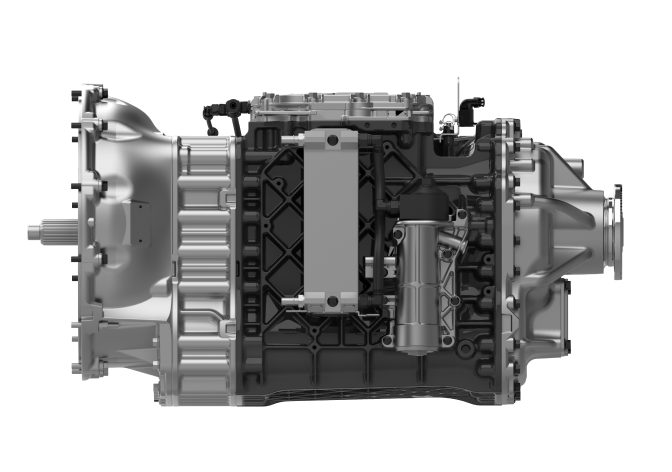

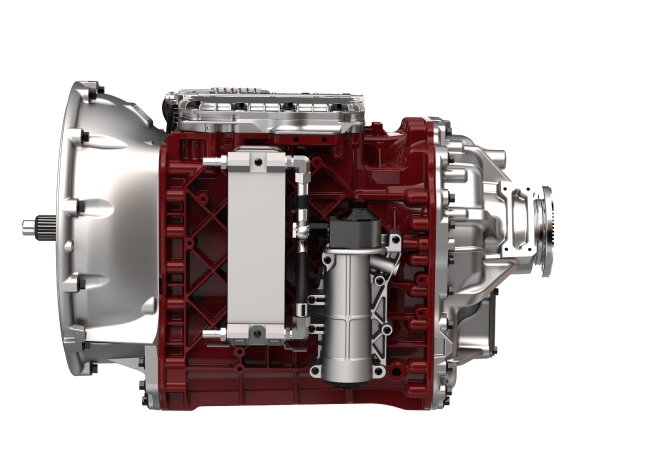

TRANSMISSION
- mDRIVE®
- mDRIVE® HD

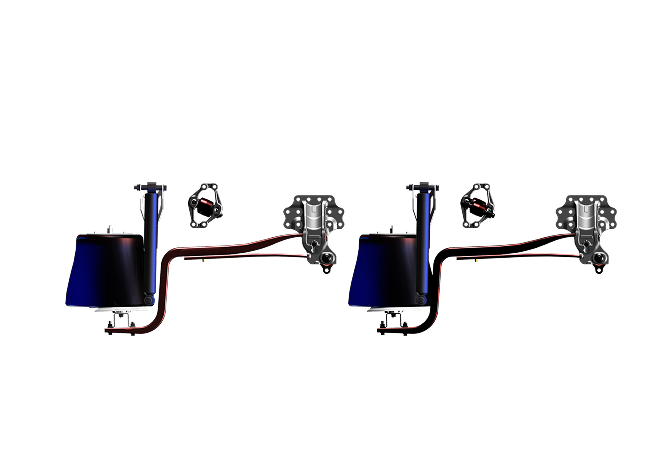

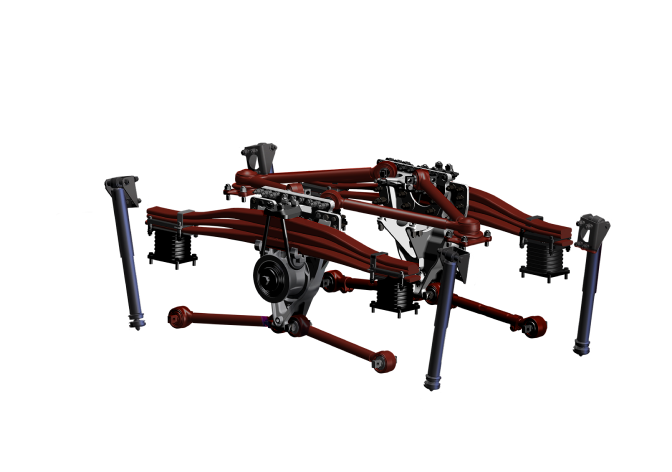

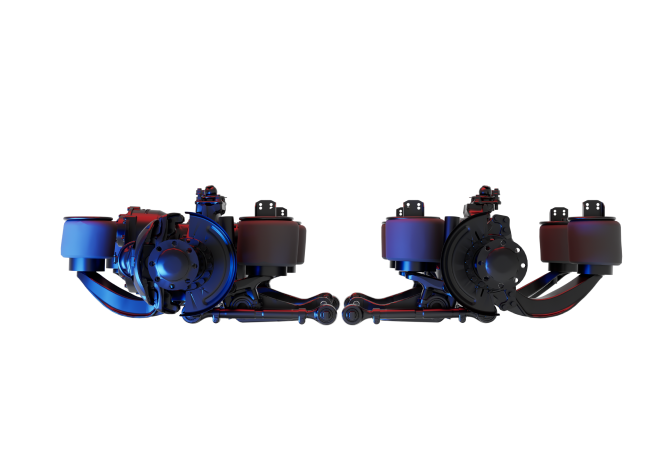

SUSPENSION
- MaxLite™
- MaxRide™
- mRIDE™
MACK MODEL
- Mack Anthem®

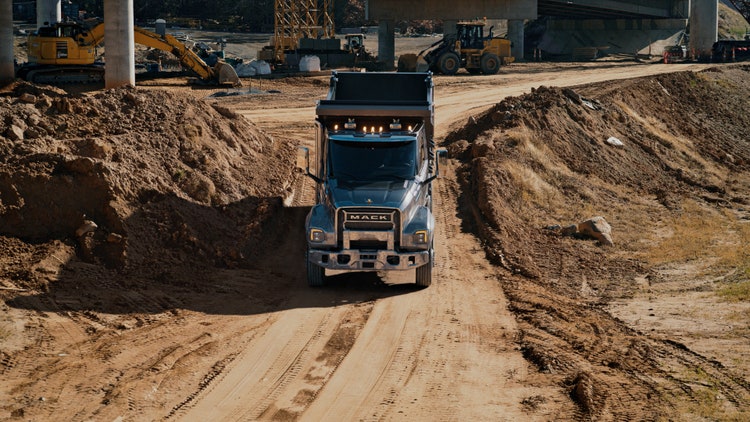

- Mack Granite®

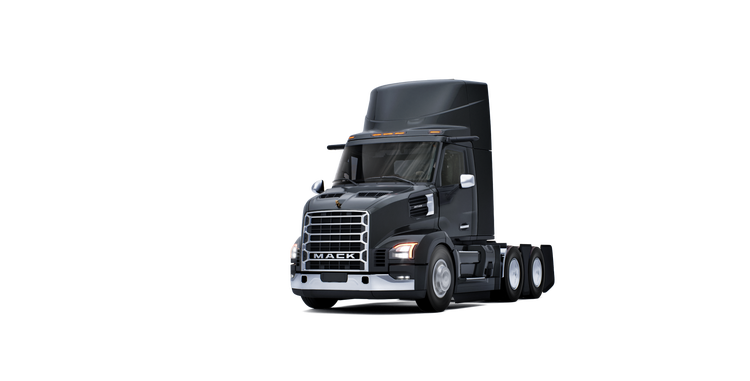

- Mack Keystone ™

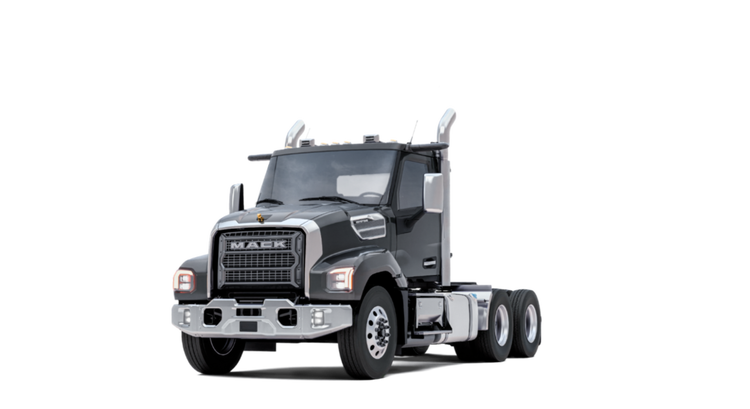

- Mack Pioneer™
One engine. Four legends.

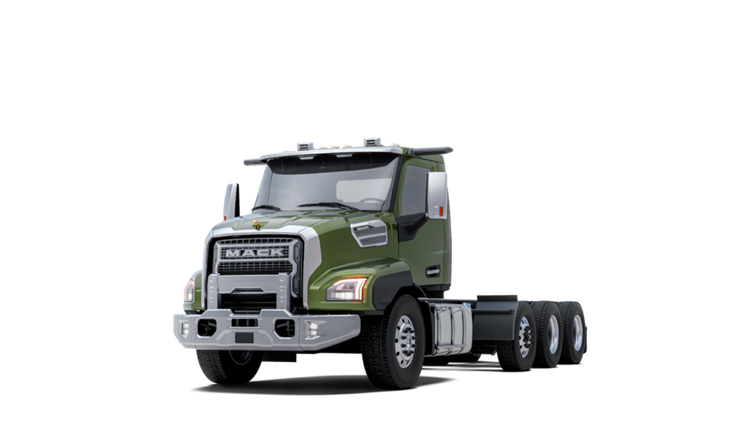

Mack® Keystone™
- Highway
- REGIONAL HAUL
- Vocational
One truck, every challenge, zero compromises.
