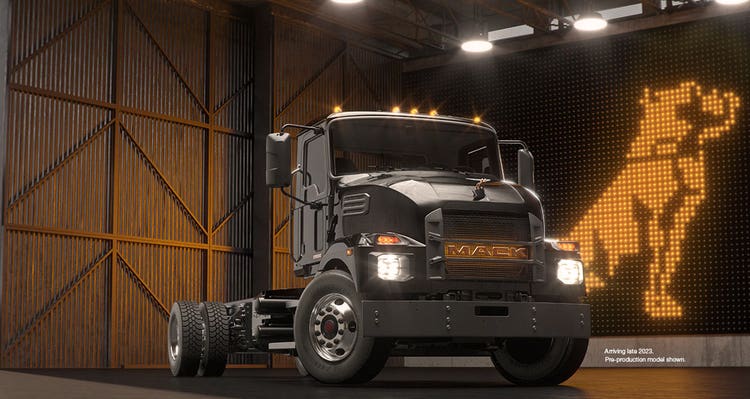

MD Electric
- max payload
- 19,400
- lbs
- estimated range
- 230
- miles1
- peak torque
- 1,850
- lb-ft max
Next-gen tech meets old-school tough.
New cab ensures a smooth, stress-free ride
Flat-bottom steering wheel with cruise control, telephone, and radio/audio controls gives drivers more room for entry/exit and operation. Tilt-telescopic steering column lets drivers adjust their comfort.
Steering
New premium driver’s seat features increased seat recline, adjustable lumber support, and a choice of vinyl or Modura upholstery. Plus, adjustable driver and passenger seat belts mean increased safety and comfort.
Seating
New overhead console provides additional storage and improved interior lighting replaces two halogen bulbs with four LED dome lights
Storage and lighting
Four inches of additional legroom
Legroom
Pre-wired Body Builder connections to Cummins & Allison
Body Builder
Legendary durability.
New longer cab
Longer cab with 4” more interior room and a 107” BBC

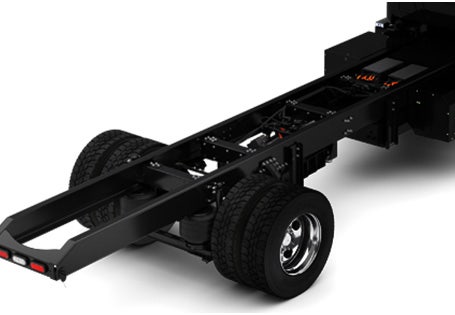

120,000 PSI yield frame rails
Heavy-duty steel frame rails ensure years of dependable service.

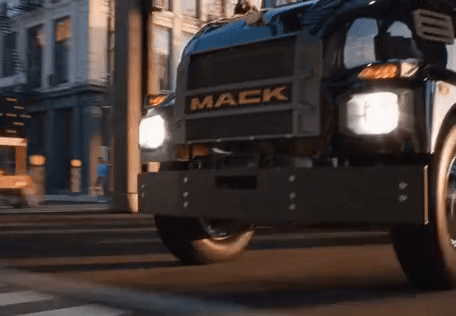

Durable front bumper
All-steel construction front bumper stands up to the toughest jobs.
Driven by innovation.
All-electric drivetrain.
Delivers impressive power while reducing emissions and maintenance costs.
NMC battery packs
150 or 240 kWh installed capacity
CCS1 charging
AC Charging Rate: 19.2 kW
DC Charging Rate: 80 kW
Mack Truck Builder
Customize your own MD Electric from the ground up with our digital truck builder experience.

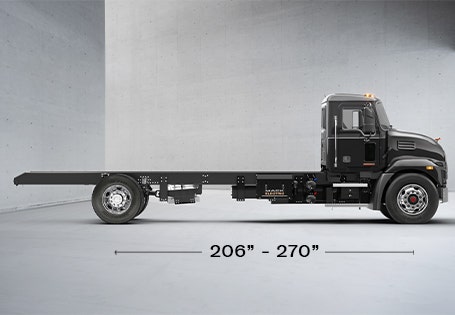

Numerous wheelbase options.
With sizes from 17 to 22 feet, get the perfect wheelbase for your application.
205"
217"
235"
255"
274"
Harness the power of integrated uptime.
Explore MD Electric

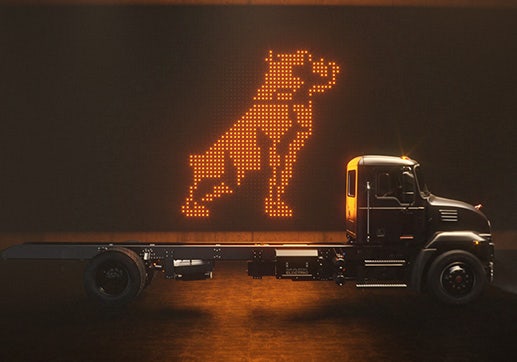

FLAT BACK-OF-CAB
The flat-back design delivers clean electrical connections for easier body installation.

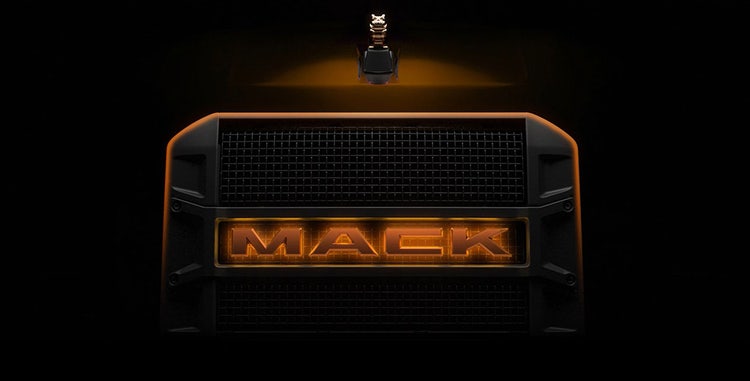

ICONIC BULLDOG
The iconic copper bulldog signifies each truck is equipped with Mack’s proven electric powertrain.

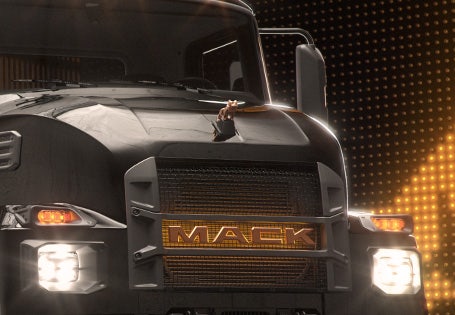

HEATED LED HEADLIGHTS
Heated LED headlights increase forward visibility by up to 29% and side visibility by up to 50%.

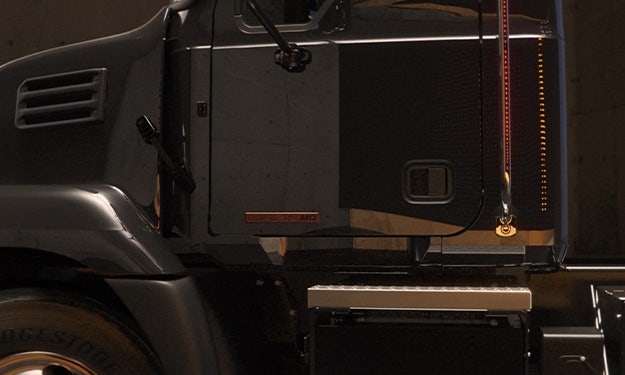

PEEP WINDOW
The passenger peep window allows for greater visibility for changing lanes, backing up and right turns.
BATTERY PROTECTION
The batteries are mounted safely between the all steel frame to keep them protected.
Charge your fleet forward with ElectriFi financing options.
When you buy a Mack® Electric Vehicle, you plug into a coast-to-coast network of service, support, and over 120 years of trucking experience.
Specs & Downloads
Warranty & Protection Plans
Purchase & Financing
Key Components
Power Source
3 Phase Permanent Magnet Synchronous Motor
Batteries
150 kWh
240 kWh
Power
12 volt — Cab systems including instruments, gauges, HVAC
24 volt — Motor/transmission controls systems
Invertors
394 volts to 24 volts
394 volts to 12 volts
Regenerative Braking
3-level selectable
Specifications
CLASS
6 & 7
HORSEPOWER
185 hp continuous
260 hp peak
TORQUE
960 lb-ft continuous
1,850 lb-ft max
GVW
25,995 – 33,000 lbs
Max Range
140 miles (2 batteries)
230 miles (3 batteries)
MAX PAYLOAD
19,400 LBS
CCS1 CHARGING
AC Charging Rate: 19.2 kW
AC Charging Time: 7 hrs. (2 batteries) / 11 hrs. (3 batteries)
DC Charging Rate: 80 kW
DC Charging Time: 100 min. (2 batteries) / 160 min. (3 batteries)
Service and Training
Supported through Mack dealership network
Downloads
Mack Ultra Service Agreement
FEATURES
Finance & Purchase
Mack Financial Services provides the support you need to build your business.
Mack Stories
Electrifying Progress in Commercial Truck Operations
Four factors to consider when adding electric to your fleet
Mack MD grows with customer acceptance
Demand Leads to New Electric Offering and Plant Expansion
1 Based on Mack internal testing. Actual range, motor output, and charge times may vary based on battery condition, charger output, and environmental factors.
