MACK
MAXRIDE™

  • Power
  • 515
  • MAX HP
  • Torque
  • 1,950
  • lb-ft max
  • Displacement
  • 13
  • liters
Page
pdp
Background image

Maximum comfort, stability and control

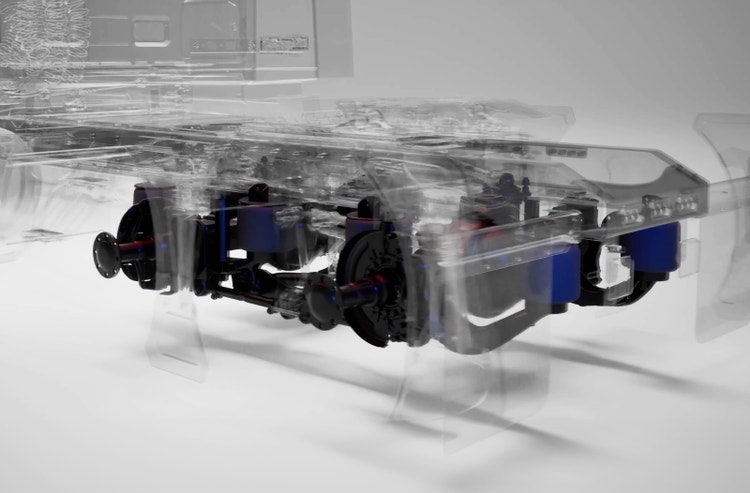

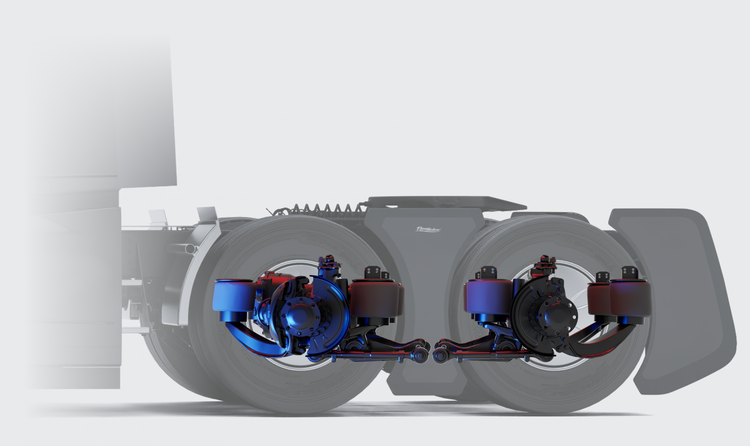

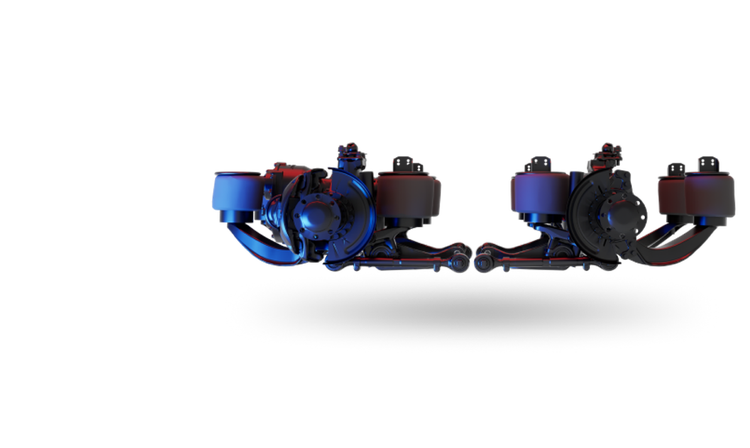

The Mack MaxRide™ rear air suspension delivers premium comfort and stability through its advanced 4 or 8-air spring design, available only on the new Mack truck platform. This non-torque reactive suspension prevents frame lift during acceleration, providing higher GCW limits and exceptional ride quality for on-highway and heavy-duty applications.

83:64

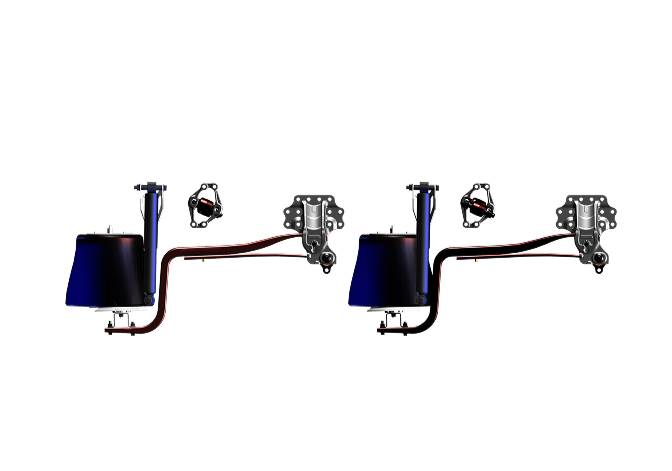

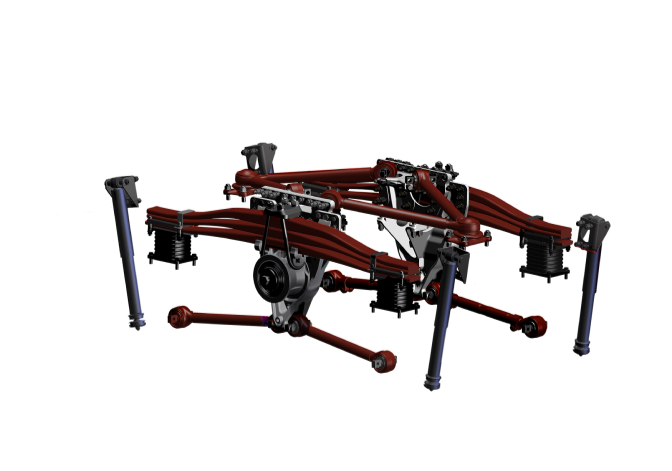

MaxRide’s eight air springs with dual leveling valves constantly adjust for uneven terrain, maintaining a smooth, stable ride.
35:53
m RIDE-style upper V-stays use rubber bushings at all pivot points to eliminate side-to-side motion without needing lubrication.
62:80
Dual stabilizer bar assemblies provide torsional rigidity and improve handling comfort by controlling chassis movement near the fifth wheel.
55:63
A cast steel air spring mounting group surrounds each air bag, providing added protection and strength for demanding applications.
45:53
Rubber-cushioned bump stops allow limited operation up to 18 mph after air loss, giving drivers time to reach a safe location.
style
Light gray background, header with mark, section--no-vertical-padding
inpage
Overview
inpage order
1

Key Features & Benefits

style
Light gray background, header with mark, section--no-vertical-padding
inpage
Key Features & Benefits
inpage order
2

Superior Ride Comfort

4 or 8-air spring design

Engineered to provide better traction, less vibration, and improved ride comfort.

Available electronic ride height levelling

Maintains consistent chassis level for a smoother, more controlled ride experience.

Reduced noise & vibration

Less susceptible to noise, vibration, and harshness.

Background image

Enhanced stability & control

Advanced anti-roll bar technology
Dual stabilizer bar assemblies provide stabilizing force in line with fifth wheel for excellent handling.

Non-torque reactive design
Prevents rear frame rise during mid-gear range acceleration, providing superior stability and control.

Higher GCW limits
Provides higher gross combination weight limits than MaxLite for increased payload capacity.

Versatile performance

Multiple application compatibility
Designed for on-highway and heavy-duty applications with varying operational requirements.

Brake compatibility
Available with both air disc and drum brake options for optimal performance.

Business benefits

Higher gross combination weights
Design allows for qualification of higher payload capacities compared to conventional suspensions.

Driver retention
Superior comfort helps attract and retain professional driver.

Improved productivity
Enhanced stability and comfort contribute to greater throughput and operational efficiency.

Specifications

#id-2

Downloads

#id-3
Header
Title 3
Inpage
Specs & Downloads
Inpage order
3
Style
Header with mark, graphite background

Suspension specs

SUSPENSION TYPE

- Air spring

REAR AXLE CONFIGURATIONS

- 4x2
- 6x2
- 6x4
- 8x4

SPRING COUNT

- 4x2, 6x2: 4
- 6x4: 8

LOAD RATINGS

- 4x2, 6x2: 23k
- 6x4, 8x4: 46k

RIDE HEIGHT OPTIONS

- 10.47 in (standard)
- 11.81 in (ECS adjusted)

ECS COMPATIBILITY

- Basic with 1 drive level and auto or manual standby
- Premium with load indicator and 1 or 3 drive levels and auto or manual standby

AXLE COMPATIBILITY

- Mack S462R
- Meritor MT40-14x
- Meritor RT46

BOGIE SPACING

- 54”

Applications & compatibility

IDEAL FOR

- Premium highway fleets
- Light vocational
- Construction-support vehicles

ENGINE

- MP®13
- MP®13HE

TRANSMISSION

- m DRIVE®
- m DRIVE® HD

MACK MODEL

- Mack Anthem™
- Mack Pioneer™

Mack Anthem Engine & Transmission

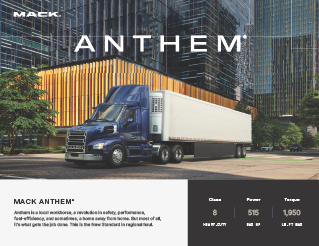

Mack Anthem specs

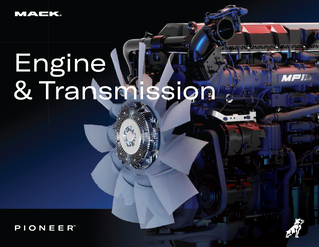

Mack Pioneer Engine & Transmission
Mack Pioneer specs
MaxLite
  • 12 speed
  • Torque: 1920 lb./ft.
m RIDE™
  • 12 speed
  • Torque: 1920 lb./ft.

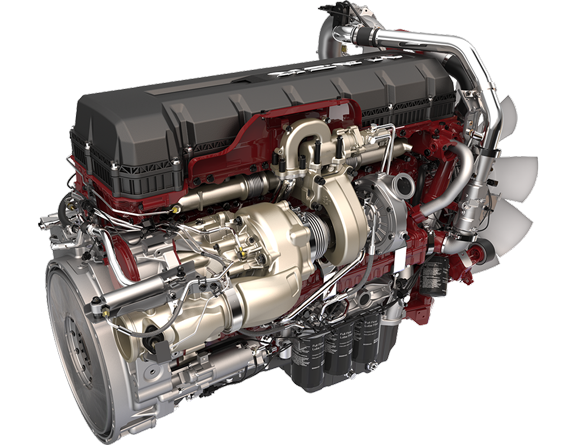

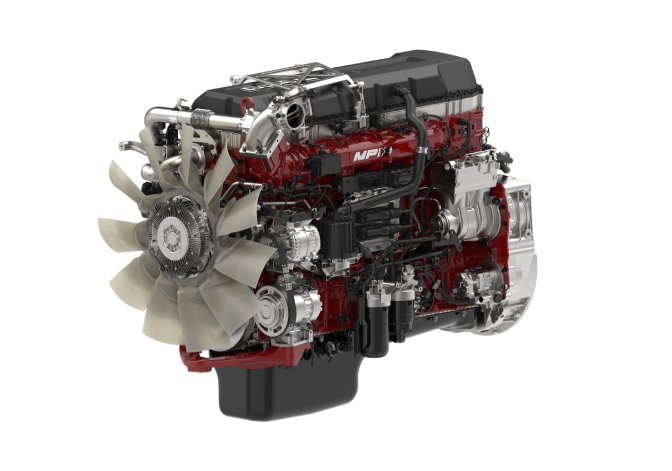

MP®13
  • Horsepower: 415 - 445
  • Torque: 1560 – 1860 lb./ft.
  • Displacement: 13L

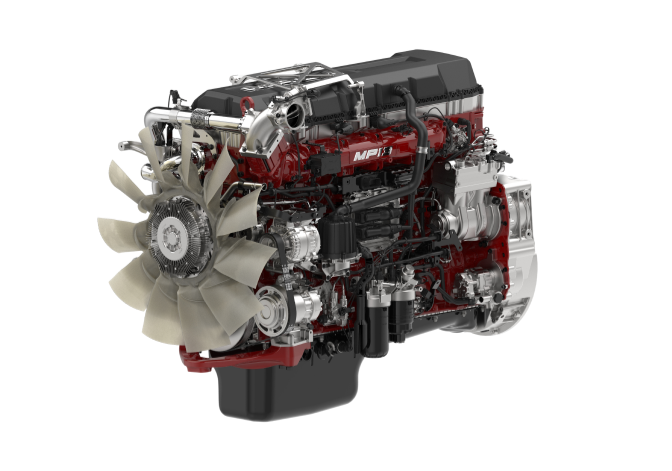

MP®13 HE
  • Horsepower: 415 - 445
  • Torque: 1560 – 1860 lb./ft.
  • Displacement: 13L

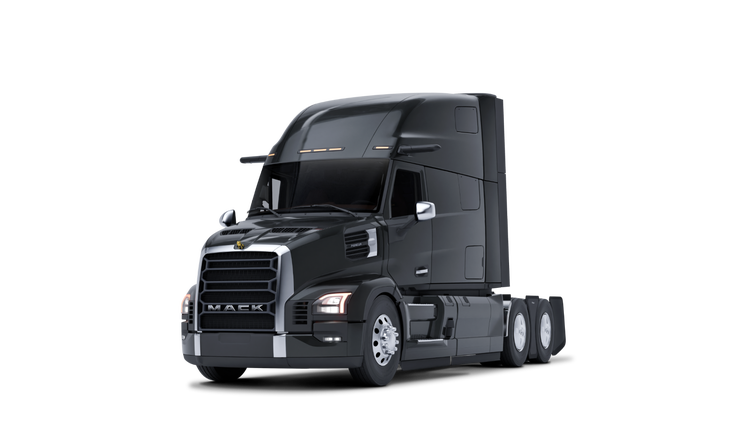

Mack Anthem®

REGIONAL HAUL

Regional routes, long-term reliability.

Explore

Build yours

Picture 848121574, Picture

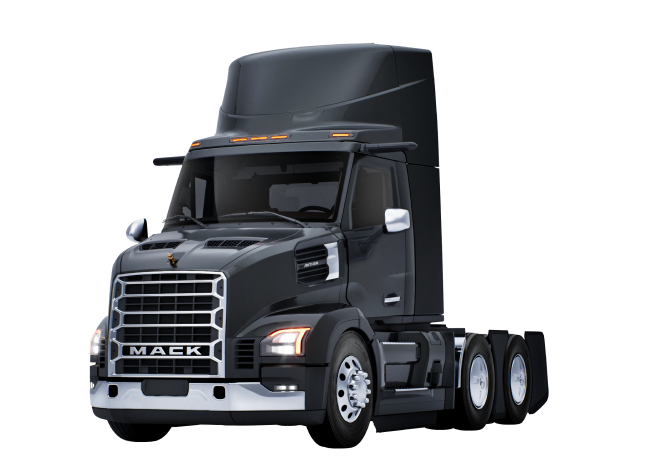

Mack Pioneer™
