m DRIVE

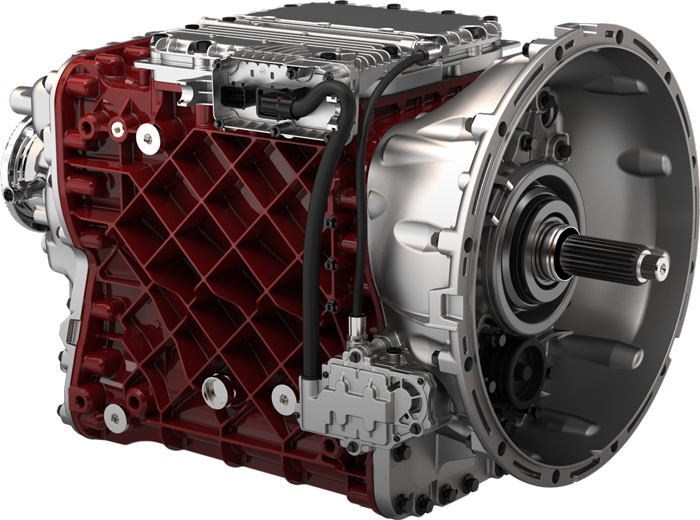

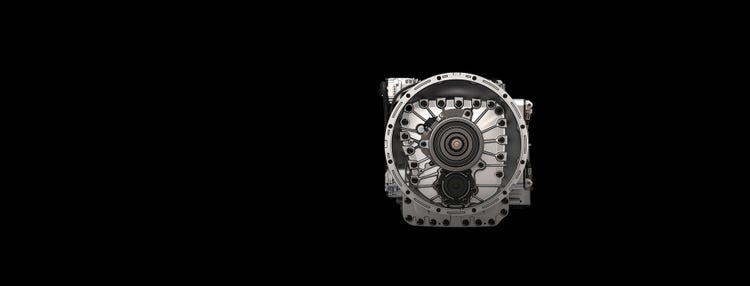

Available with optional 13- and 14-speed creeper gears, the Mack m DRIVE™ HD provides flexible gearing for low-speed applications, as well as improved startability for heavy loads, while maintaining proper gearing for fuel efficiency at speed.
HARDENED GEARS
REINFORCED SYNCHRONIZERS
MULTIPLE PTO LOCATIONS
HIGH-VISCOSITY OIL
237 LBS. LIGHTER THAN COMPETITORS
2,060 LB.-FT. TORQUE
315 TO 605 HORSEPOWER
Low-speed Creeper Gears
Geared up for any job
Mack’s HD is now engineered with two additional low gear ratios for vocational work, plus multi-speed reverse gears for more startability, maneuverability and flexibility in low-speed applications. So no matter the job, you’ve got the ability to dominate.
Power Launch
Get out of the toughest spots
When rocking won’t release your truck from sand and loose soil, HD allows you to raise the engine RPM and torque before engaging drive mode to free your vehicle from spots that would sink the other guys. (Available with Performance shifter package)
Grade Gripper
Winning the uphill battle
Grade Gripper holds the truck on an incline for up to three seconds after the brake pedal is released. So there’s no dangerous or awkward rolling backwards when stopping on a grade.

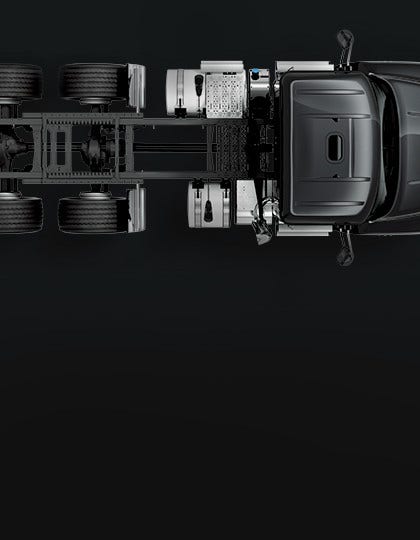

Complete integration
Part of our legendary integrated powertrain, m DRIVE HD works seamlessly with Mack engines and axles for better efficiency, more uptime and lower costs.
Increased driver productivity
m DRIVE HD is automated, and that means less physical stress on drivers, so they can finish the job strong and stay focused.
Lighter than the rest
Even though it’s built strong, m DRIVE HD is hundreds of pounds lighter than the competitors, so you can ditch dead weight and increase your payload.
12-GEAR Direct Drive Gear Ratios
12-GEAR Direct Drive Specifications
13-GEAR Direct Drive Gear Ratios
13-GEAR Direct Drive Specifications
12-GEAR Overdrive Gear Ratios
12-GEAR Overdrive Specifications
13-GEAR Overdrive Gear Ratios
13-GEAR Overdrive Specifications
14-GEAR Overdrive Gear Ratios
14-GEAR Overdrive Specifications
Software Options
Maintenance Intervals
FORWARD GEAR |
RATIO |
STEP |
| 1st | 14.94 | |
| 2nd | 11.73 | 27% |
| 2rd | 9.04 | 30% |
| 4th | 7.09 | 28% |
| 5th | 5.54 | 28% |
| 6th | 4.35 | 27% |
| 7th | 3.44 | 26% |
| 8th | 2.70 | 27% |
| 9th | 2.08 | 30% |
| 10th | 1.63 | 28% |
| 11th | 1.27 | 28% |
| 12th | 1.00 | 27% |
REVERSE GEAR |
RATIO |
STEP |
| 1st | 17.48 | |
| 2nd | 13.73 |
Direct Drive Specifications
LENGTH
35.1" [891 MM]
WEIGHT (DRY)
597 lb. [271 kg]
OIL CAPACITY
16.9 Quarts [16 L]
TORQUE RATING
1920 lb. ft. [2600 N•m]
NUMBER OF SPEEDS - FORWARD
12
NUMBER OF SPEEDS - REVERSE
2
CASE, BELL HOUSING MATERIAL
One piece Heat treated aluminum
CASE, BELL HOUSING TYPE
SAE #1
TYPE OF GEARS
Helical
CONTROL
D panel dash mounted shifter
SHIFTER INDICATORS
R-Reverse / N-Nuetral / D-Drive / M-Manual
LUBRICATION
Splash & Pressure
FORWARD GEAR |
RATIO |
STEP |
| 1st | 19.38 | |
| 2nd | 19.38 | 27% |
| 2rd | 11.73 | 30% |
| 4th | 9.04 | 28% |
| 5th | 7.09 | 28% |
| 6th | 5.54 | 27% |
| 7th | 4.35 | 26% |
| 8th | 3.44 | 27% |
| 9th | 2.70 | 30% |
| 10th | 2.08 | 28% |
| 11th | 1.63 | 28% |
| 12th | 1.27 | 27% |
REVERSE GEAR |
RATIO |
STEP |
| RC | 37.49 | |
| R1 | 17.48 | |
| R2 | 13.73 | |
| R3 | 8.62 |
Direct Drive Specifications
LENGTH
40" [1016 MM]
WEIGHT (DRY)
687 lb. [312 kg]
OIL CAPACITY
19.5 Quarts [18.5 L]
TORQUE RATING
1920 lb. ft. [2600 N•m]
NUMBER OF SPEEDS - FORWARD
13
NUMBER OF SPEEDS - REVERSE
4
CASE, BELL HOUSING MATERIAL
One piece Heat treated aluminum
CASE, BELL HOUSING TYPE
SAE #1
TYPE OF GEARS
Helical
CONTROL
D panel dash mounted shifter
SHIFTER INDICATORS
R-Reverse / N-Nuetral / D-Drive / M-Manual
LUBRICATION
Splash & Pressure
FORWARD GEAR |
RATIO |
STEP |
| 1st | 11.73 | |
| 2nd | 9.21 | 27% |
| 2rd | 7.09 | 30% |
| 4th | 5.57 | 27% |
| 5th | 4.35 | 28% |
| 6th | 3.41 | 28% |
| 7th | 2.70 | 26% |
| 8th | 2.12 | 27% |
| 9th | 1.63 | 30% |
| 10th | 1.28 | 27% |
| 11th | 1.00 | 28% |
| 12th | 0.78 | 27% |
REVERSE GEAR |
RATIO |
STEP |
| 1st | 13.73 | |
| 2nd | 10.78 |
Direct Drive Specifications
LENGTH
35.1" [891 MM]
WEIGHT (DRY)
597 lb. [271 kg]
OIL CAPACITY
16.9 Quarts [16 L]
TORQUE RATING
1920 lb. ft. [2600 N•m]
NUMBER OF SPEEDS - FORWARD
12
NUMBER OF SPEEDS - REVERSE
2
CASE, BELL HOUSING MATERIAL
One piece Heat treated aluminum
CASE, BELL HOUSING TYPE
SAE #1
TYPE OF GEARS
Helical
CONTROL
D panel dash mounted shifter
SHIFTER INDICATORS
R-Reverse / N-Nuetral / D-Drive / M-Manual
LUBRICATION
Splash & Pressure
FORWARD GEAR |
RATIO |
STEP |
| Creeper | 17.54 | |
| 1st | 11.73 | |
| 2nd | 9.21 | 27% |
| 2rd | 7.09 | 30% |
| 4th | 5.57 | 27% |
| 5th | 4.35 | 28% |
| 6th | 3.41 | 28% |
| 7th | 2.70 | 26% |
| 8th | 2.12 | 27% |
| 9th | 1.63 | 30% |
| 10th | 1.28 | 27% |
| 11th | 1.00 | 28% |
| 12th | 0.78 | 27% |
REVERSE GEAR |
RATIO |
STEP |
| RC | 20.53 | |
| R1 | 13.73 | |
| R2 | 10.78 |
Direct Drive Specifications
LENGTH
40" [1016 MM]
WEIGHT (DRY)
687 lb. [312 kg]
OIL CAPACITY
19.5 Quarts [18.5 L]
TORQUE RATING
1920 lb. ft. [2600 N•m]
NUMBER OF SPEEDS - FORWARD
13
NUMBER OF SPEEDS - REVERSE
2
CASE, BELL HOUSING MATERIAL
One piece Heat treated aluminum
CASE, BELL HOUSING TYPE
SAE #1
TYPE OF GEARS
Helical
CONTROL
D panel dash mounted shifter
SHIFTER INDICATORS
R-Reverse / N-Nuetral / D-Drive / M-Manual
LUBRICATION
Splash & Pressure
FORWARD GEAR |
RATIO |
STEP |
| Creeper 1 | 32.04 | |
| Creeper 2 | 19.38 | |
| 1st | 11.73 | |
| 2nd | 9.21 | 27% |
| 2rd | 7.09 | 30% |
| 4th | 5.57 | 27% |
| 5th | 4.35 | 28% |
| 6th | 3.41 | 28% |
| 7th | 2.70 | 26% |
| 8th | 2.12 | 27% |
| 9th | 1.63 | 30% |
| 10th | 1.28 | 27% |
| 11th | 1.00 | 28% |
| 12th | 0.78 | 27% |
REVERSE GEAR |
RATIO |
STEP |
| RC | 37.79 | |
| R1 | 13.73 | |
| R2 | 10.78 | |
| R3 | 8.62 |
Direct Drive Specifications
LENGTH
40" [1016 MM]
WEIGHT (DRY)
687 lb. [312 kg]
OIL CAPACITY
19.5 Quarts [18.5 L]
TORQUE RATING
2360 lb. ft. [3200 N•m]
NUMBER OF SPEEDS - FORWARD
14
NUMBER OF SPEEDS - REVERSE
4
CASE, BELL HOUSING MATERIAL
One-piece Heat-treated aluminum
CASE, BELL HOUSING TYPE
SAE #1
TYPE OF GEARS
Helical
CONTROL
D panel dash mounted shifter
SHIFTER INDICATORS
R-Reverse / N-Nuetral / D-Drive / M-Manual
LUBRICATION
Splash & Pressure
mDRIVE |
NORMAL DUTYGreater than 6 mpg Less than 39L/100km |
HEAVY DUTYGreater than 5 mpg Less than 50L/100km |
SEVERE DUTYLess than 5 mpg Greater than 50L/100km |
|||
|
MP® 7 / MP® 8 or MP®10 with 42 L / 44 Qt Oil Pan: Mack EOS-4.5* Premium Oil, Filters and Fuel Filters (Replace) |
MILES | 500,000 | Not Allowed | |||
| KM | 800,000 | Not Allowed | ||||
| HOURS | 60 months | Not Allowed | ||||
m DRIVE™; m DRIVE™ Severe Duty and m DRIVE™ with Crawler Gears |
||||||
|
MP® 10 with 52 L / 55 Qt Oil Pan: Mack EOS-4.5* Premium Oil, Filters, and Fuel Filters (Replace) |
MILES | 500,000 | 250,000 | |||
| KM | 800,000 | 400,000 | ||||
| HOURS |
|
2500 h | ||||
T300 SERIES TRANSMISSION |
||||||
| Highway Standard and Extended Oil (Replace) | MILES |
|
- | |||
| KM |
|
- | ||||
| HOURS |
|
- | ||||
| Vocational Standard and Extended Oil (Replace) | MILES | - | Std: 40,000 / Ext: 80,000 | |||
| KM | - | Std: 64,000 / Ext: 128,000 | ||||
| HOURS | - | Std: 12 months / Ext: 12 months | ||||
AXLES |
||||||
| Mack Premium Long-Life Coolant (Replace) | MILES | 500,000 | 80,000 | |||
| KM | 800,000 | 125,000 | ||||
| HOURS | 36 months | 12 months | ||||
